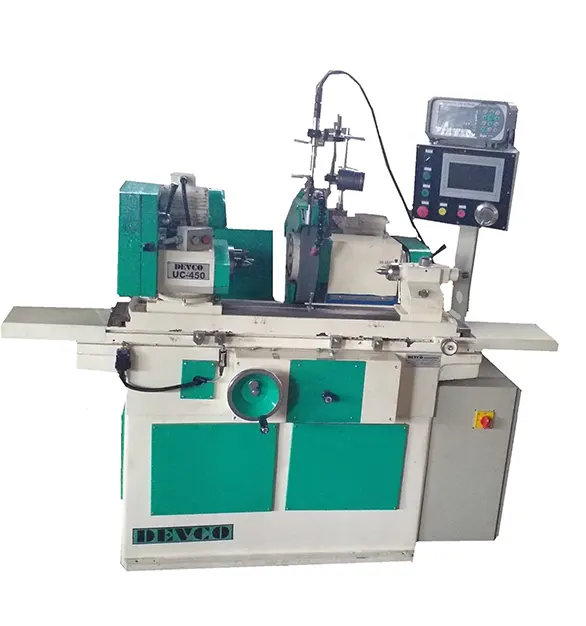

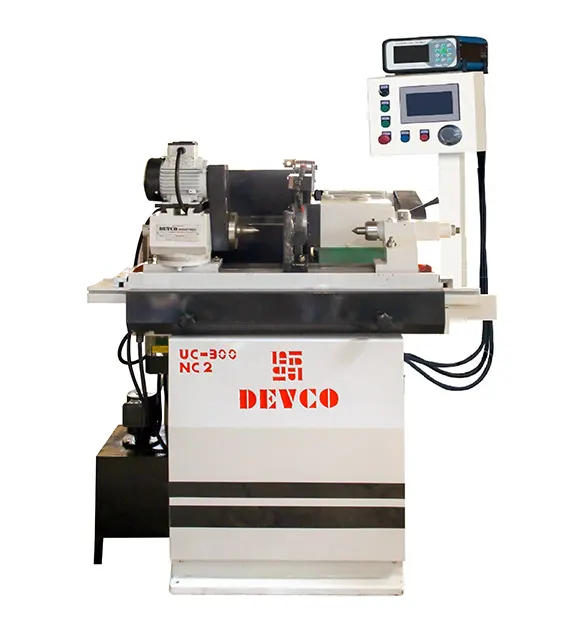

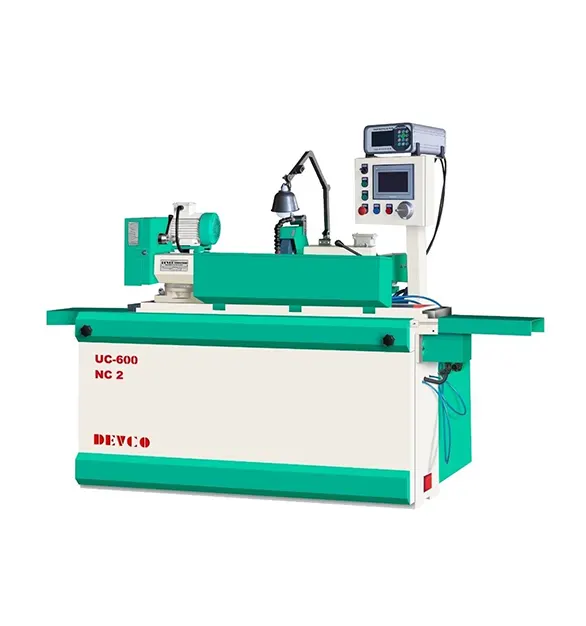

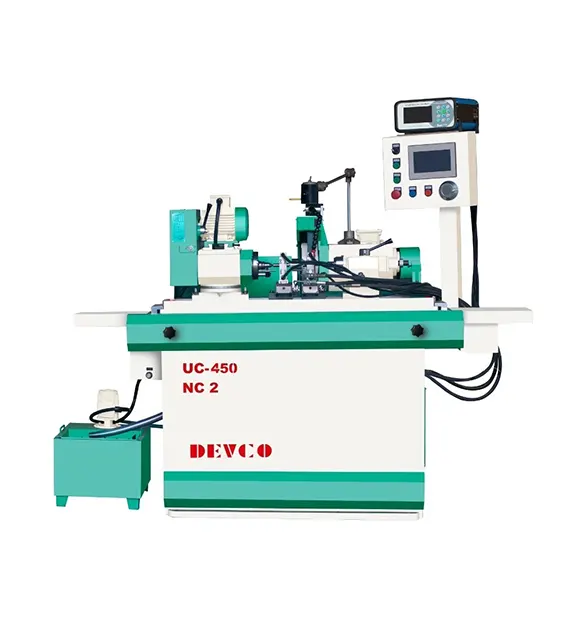

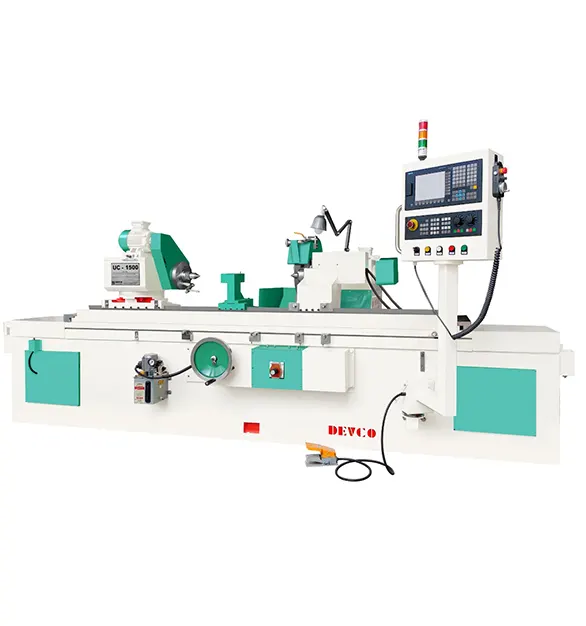

PLC External Grinding Machine

Technical Data

Specification	Unit	NC-300	NC-450	NC-500 / NC-600
Capacity
Distance Between Centre	mm	310	460	510 / 610
Max. Work piece weight with rest	Kg	35	85	125
Height of Center	mm	102	130	155
Table
Swiveling Angle	Degree	+ 10º - 4º	+ 9º - 3º	+ 7º - 3º
Servo Motor	Watt	750	750	1 Kw
Automatic Lubrication Oil Pump Motor	HP	0.12	0.12	0.12
Wheel Head
Grinding wheel size DxWxB	mm	300x25x76.2	300x40x127	350x40x127
Grinding wheel speed	RPM	1900	1900	1700
In feed of hand wheel per Division	Micron	0.001/0.01/0.1	0.001/0.01/0.1	0.001/0.01/0.1
Electric Motor Required (3-Phase)	HP/rpm	2 / 1440	3 / 1440	3 / 1440
Rapid approach (Speed)	RPM	10-9999	10-9999	10-9999
Servo Motor	Watt	750	1 KW	1 KW
Work Head
Spindle Speed (Variable with VFD)	RPM	50-500	50-500	50-500
Spindle in Taper	MT	MT-3	MT-3	MT-4
Electric Motor (3-Phase)	HP/rpm	0.5 / 1440	0.5 / 1440	1 / 1440
Tail Stock
Taper in quile	MT	MT-3	MT-3	MT-4
Max quile Stock	mm	25	25	40
Coolant Tank
Coolant tank Capacity	Liter	50	65	65
Coolant Pump (3-Phase)	HP/rpm	0.15 / 2800	0.15 / 2800	0.15 / 2800
Weight
Machine Approx	Kg	1100	1400	1700 / 2100

Note :- speecification and design are subject change without notice.
