CENTERLESS GRINDING MACHINE

DG-50 (Manual)

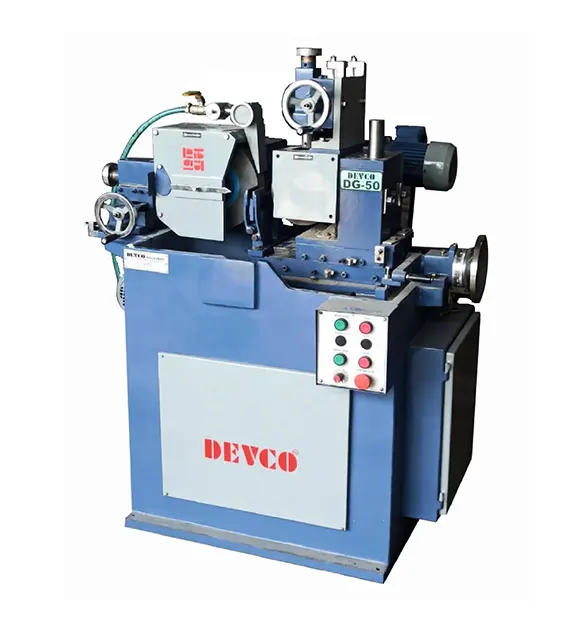

DG-50

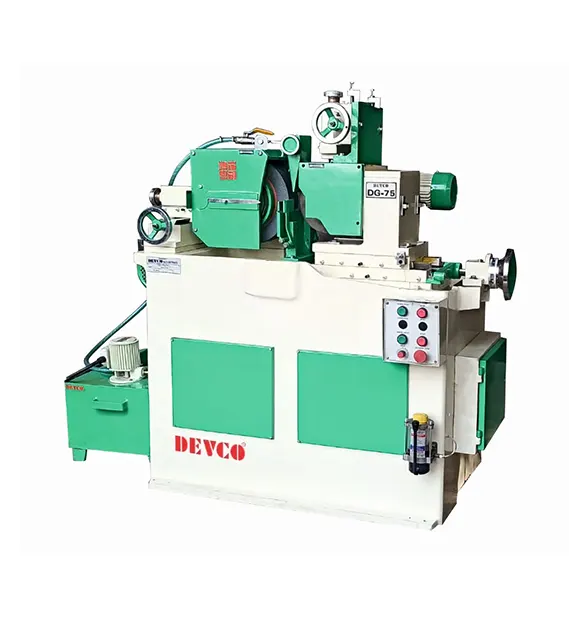

DG-75

Technical Data

SPECIFICATIONUNITMODEL
DG-50DG-75DG-100
Max. Grinding dia.MM4075100
Min. Grinding dia.MM112
Max. length in through feedMM150200250
Grinding wheel (DxWxB)MM250x50x76.2300x80x140350x100x127
Regulating wheel (DxWxB)MM180x50x76.2200x80x76.2230x100x76.2
Grinding wheel speedRPM230019001700
Regulating wheel speed (4-step)RPM16-30-55-100
Swivel of Regulating wheel headDeg.5º
Grinding wheel & Reg. wheel head (Dresser)Mannualy OR Hydraulic
Wheel head (Motor)H.P235
Regulating wheel head (Motor)H.P0.50.51
Coolant pumpH.P0.150.150.15
Weight of machine (Approx)Kg70012001500
Note:- speecification and design are subject to change without notice.

EXTRA ACCESSORIES

Additional Grinding Wheel Flange | Additional Regulating Wheel Flange | Grinding Wheel Balancing Blocks | Wheel Balancing Arbor | Wheel Balancing Stand | Magnetic Separator | Hydraulic Dressing Attachment | Carbide work rest blade for straight grinding | Work rest blade-hardened for straight grinding | VFD | DRO Unit | Micro Feed Attachment | Automatic Lubrication Oil Pump | Turcite coated Slide | Machine Lamp | Vibrating Pad | Bar feeding Attachment

Standard Accessories

  • Grinding Wheel with Flange
  • Regulating Wheel with Flange
  • Balancing Blocks
  • Work Rest
  • Leveling for Work Rest
  • Wheel Head Motor & Work Head Motor
  • Coolant Tank with Pump and Piping
  • Dressing Attachment (manual)
  • Wheel Flange Extractor
  • V-Belts and Pulley Cover
  • Lubricant Oil Pump
  • Electric Panel with Push Buttons
  • PU Paints with super Finish
